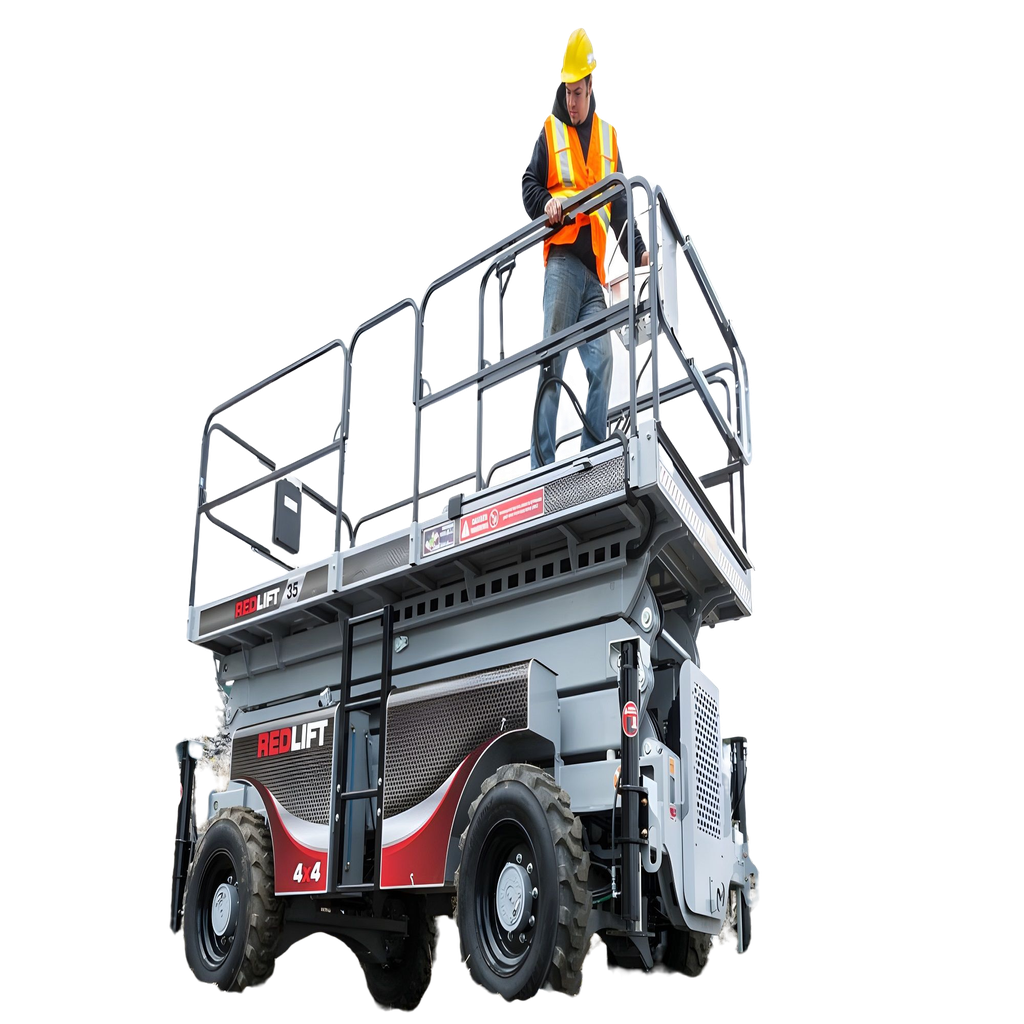

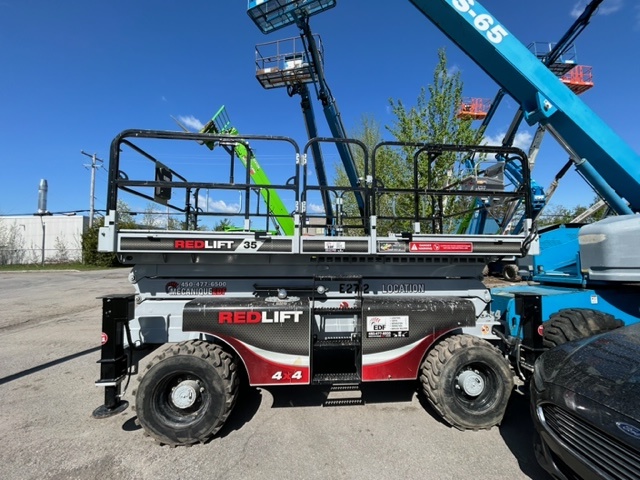

Red lift RL35 35' Fuel scissor lift
The RL 35 motorized platform has significant advantages, including its side floor which adds extra working length without displacement, its retractable floor, its sidebars facilitating positioning on the side of structures and its two easy-to-use control panels. utilize. All these innovations ensure that the RL 35 is still perched very high in the scissor lift market.
This product is no longer available.
| Brand: Red Lift |
| Working height: 12,50 m | 41,00' |
| Overall length: 4,27 m | 14,01' |
| Tires: 32" |
| Type of energy: Diesel |
| Expansion capacity: 0,25 t | 500 lb |
| Drive Speed: 5 km/h |
| Hydraulic tank capacity: 150 L |
| Diesel tank capacity: 150 L |
| Weight: 5,54 t | 11075 lb |
| Platform height: 10,67 m | 35,00' |
| Lift capacity: 0,75 t | 1,500 lb |
| Lateral Platform Capacity: 0,25 t | 500 lb |
| Rise/lower time: 40/45 s |
| Turning radius - inside: 174" | 4,41 m |
| Turning radius - outside: 5,23 m | 17,15' |
| Kubota diesel engine: 24,5 HP |
| Hydraulic brakes: 4 roues |
| Tilt alarm: 3° |
| Total length (center of wheels): 101" |
| Overall width (outside wheels): 86" |
| Overall height: 106" |
| Height to platform: 66" |
| Height of the guards: 42" |
| Platform area: 4,27 m x 1,83 m | 14,00' x 6,00' |
| Retractable floor: 36" |
| side platform: 32" |
| Clearance under the axles: 14" |
