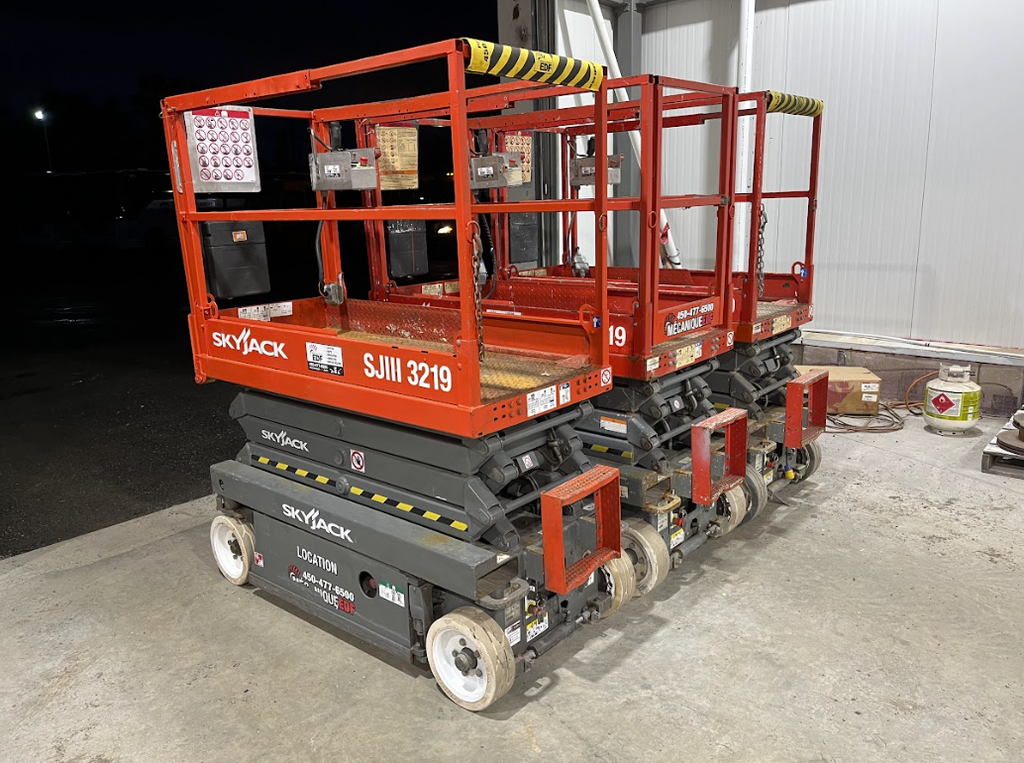

Skyjack SJIII 3219 19' Battery Scissor lift

https://crm.locationedf.com/web/image/product.template/1260/image_1920?unique=ff9dae8

0.00 $ 0.0 CAD 0.00 $

0.00 $

  • Brand
  • Working height
  • Platform height, lowered
  • Overall Width
  • Platform width (inside dimension)
  • Platform length (inside dimension)
  • Gradeability
  • Capacity
  • Tire type
  • Tire size
  • Local ground load (with rated load)
  • Type of energy
  • Weight
  • Turning radius - outside
  • Max. wind speed
  • Wheelbase
  • Overall length
  • Ground clearance (stowed)
  • Ground clearance (platform raised)
  • Overall floor load (with rated load)
  • Lifting time (with rated load)
  • Lowering time (with rated load)
  • Driving speed (in stowed position)
  • Driving speed (platform lifted)
  • Maximum drive height
  • Maximum number of persons
  • Platform height lifted
  • Stowed height (railings mounted)
  • Stowed Height (Guardrails Down)
  • Platform extension (sliding)
  • Distributed Capacity (Primary Platform)
  • Distributed capacity (platform extension)

This combination does not exist.

Brand: SKYJACK
Working height: 25' | 7,62 m
Platform height, lowered: 0,99 m | 3,25'
Overall Width: 0,81 m | 2,66'
Platform width (inside dimension): 0,66 m | 2,17'
Platform length (inside dimension): 1,63 m | 5,35'
Gradeability: 30%
Capacity: 249 kg | 550 lb
Tire type: Solid, N/M
Tire size: 12 x  4  x  8"
Local ground load (with rated load): 759 kPa (110 lb/po²)
Type of energy: Electric
Weight: 1 170 kg (2 580 lb)
Turning radius - outside: 1,68 m | 5,51'
Max. wind speed: 12,5 m/s (28 mi/h)
Wheelbase: 1,40 m | 4,59'
Overall length: 1,78 m | 5,84'
Ground clearance (stowed): 6,03 cm (2,37")
Ground clearance (platform raised): 1,78 cm (0,7")
Overall floor load (with rated load): 10 kPa (201 lb/pi²)
Lifting time (with rated load): 25 s
Lowering time (with rated load): 29 s
Driving speed (in stowed position): 3,2 km/h (2 mi/h)
Driving speed (platform lifted): 1,1 km/h (0,7 mi/h)
Maximum drive height: Hauteur totale
Maximum number of persons: 2
Platform height lifted: 19' | 5,79 m
Stowed height (railings mounted): 1,99 m | 6,53'
Stowed Height (Guardrails Down): 1,64 m | 5,38'
Platform extension (sliding): 3' | 0,91 m
Distributed Capacity (Primary Platform): 136 kg | 300 lb
Distributed capacity (platform extension): 113 kg | 250 lb
